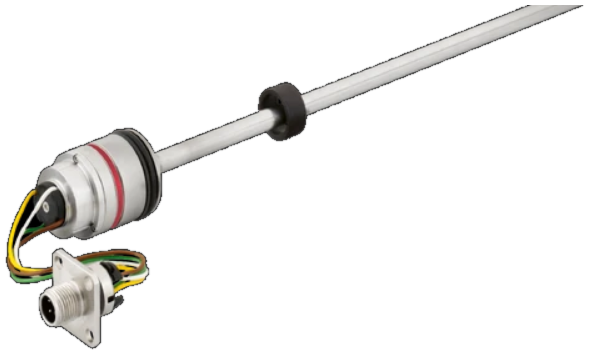

MH-Series EMBEDDED
In-Cylinder Position Sensors for Mobile Hydraulics
The Temposonics MH-Series EMBEDDED is a magnetostrictive position sensor for full embedment inside hydraulic cylinders on mobile machinery. Absolute, non-contact measurement with IP69K sealing, rated for high shock, vibration and EMC immunity.
Key Features
Full embedment in hydraulic cylinder, requiring no external mounting
Standard MH: stroke lengths 50–2500mm
MH200 long-stroke variant: stroke lengths up to 5000mm
Proprietary M12 and DT connector systems rated to IP69K
Outputs: Analog, CANbus, PWM (PWM on standard MH only)
Confirmed applications: front axle steering, articulated frame steering, hydraulic jacks on agricultural and construction machinery
Temposonics MH-Series EMBEDDED in Ireland
The Temposonics MH-Series EMBEDDED is a magnetostrictive position sensor for full embedment inside hydraulic cylinders on mobile machinery. Absolute, non-contact measurement with no mechanical wear. IP69K sealed via proprietary M12 or DT connector systems. The standard MH covers strokes from 50mm to 2500mm with 0.1mm resolution and Analog, CANbus and PWM outputs. The MH200 long-stroke variant covers cylinders up to 5000mm with 0.5mm resolution and Analog or CANbus output. Both variants are engineered for high shock, vibration and EMC immunity.
The MH-Series EMBEDDED is designed for in-cylinder absolute position measurement on mobile hydraulic machinery. Confirmed applications include front axle steering cylinders, articulated frame steering and hydraulic jacks on agricultural tractors, telehandlers and construction equipment. The MH200 variant is specified where cylinder stroke exceeds 2500mm.
Emolice is the only authorised Temposonics distributor in Ireland.
Specifications
| Output | Stroke Length | Resolution |
|---|---|---|
| Analog (MH standard) | 50–2500 mm | 0.1 mm |
| CANbus (MH standard) | 50–2500 mm | 0.1 mm |
| PWM (MH standard) | 50–2500 mm | 0.1 mm |
| Analog (MH200 long-stroke) | up to 5000 mm | 0.5 mm |
| CANbus (MH200 long-stroke) | up to 5000 mm | 0.5 mm |
