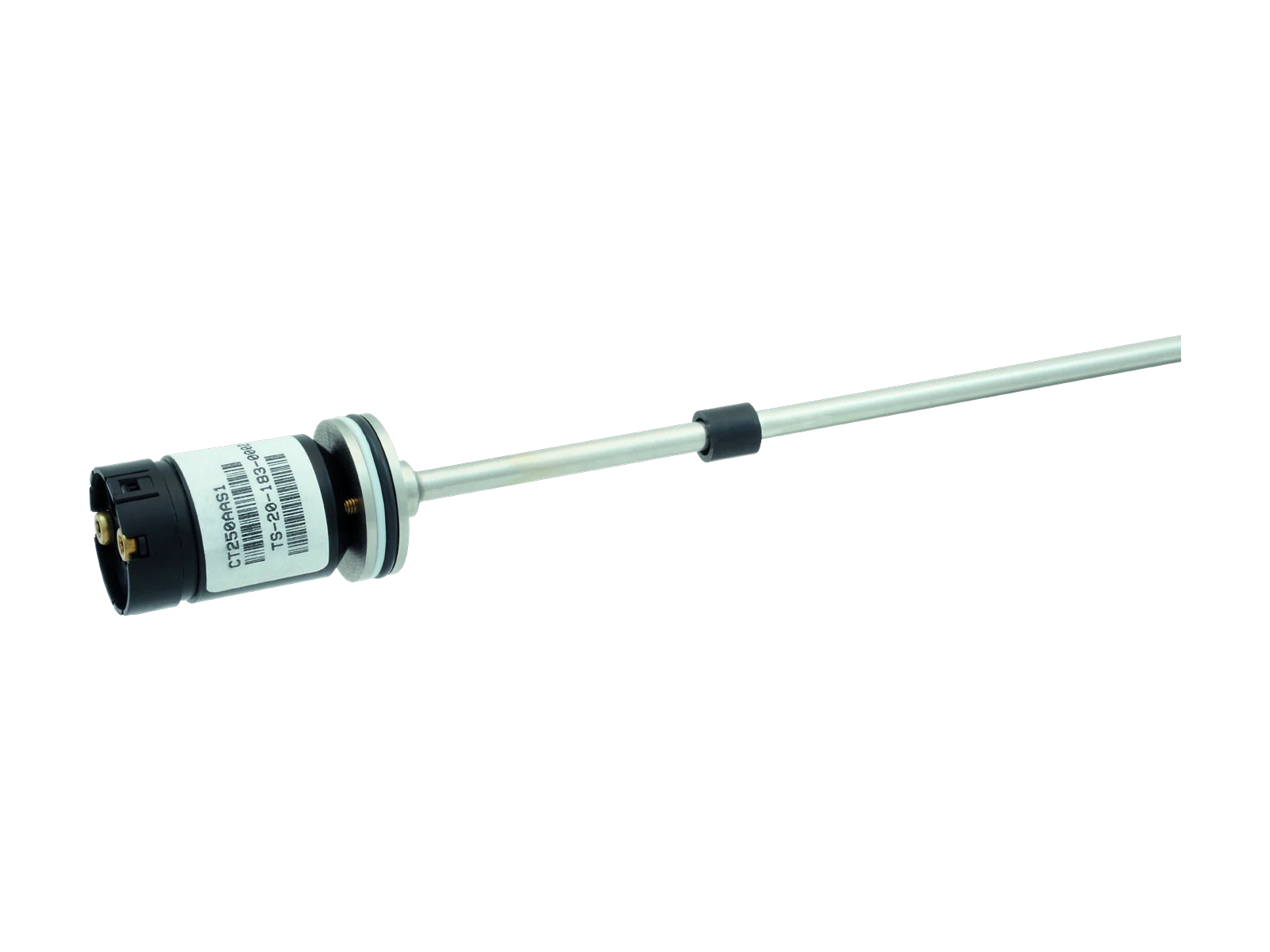

C-Series OFF-HIGHWAY
Position Sensors
Core sensor for mobile hydraulic applications. Rugged design for off-highway applications with 4–20 mA output for mobile hydraulic standards. Designed for battery-powered systems.
Key Features
4–20 mA output for mobile hydraulic standards
Rugged design for off-highway applications
Stroke lengths up to 275 mm
Designed for battery-powered systems with 12/24 VDC operational voltage
Temposonics C-Series OFF-HIGHWAY in Ireland
The Temposonics C-Series OFF-HIGHWAY is a compact magnetostrictive position sensor for battery-powered off-highway machinery where small cylinder strokes and restricted sensor size are the primary design constraints. Stroke lengths from 72mm to 275mm. Analog 4-20mA output. Operating voltage 12/24VDC. Rated for 100g shock and EMI resistance to 200V/m. Available for in-cylinder or external mounting.
The C-Series OFF-HIGHWAY is confirmed for agricultural sprayers (boom height control and steering), mobile paving machines, watercraft (trim tab and wake shaping plane control) and recreational vehicles.
Emolice is the only authorised Temposonics distributor in Ireland.
Specifications
| Output | Stroke Length | Resolution |
|---|---|---|
| Analog | 72–275 mm | 0.3 mm |
