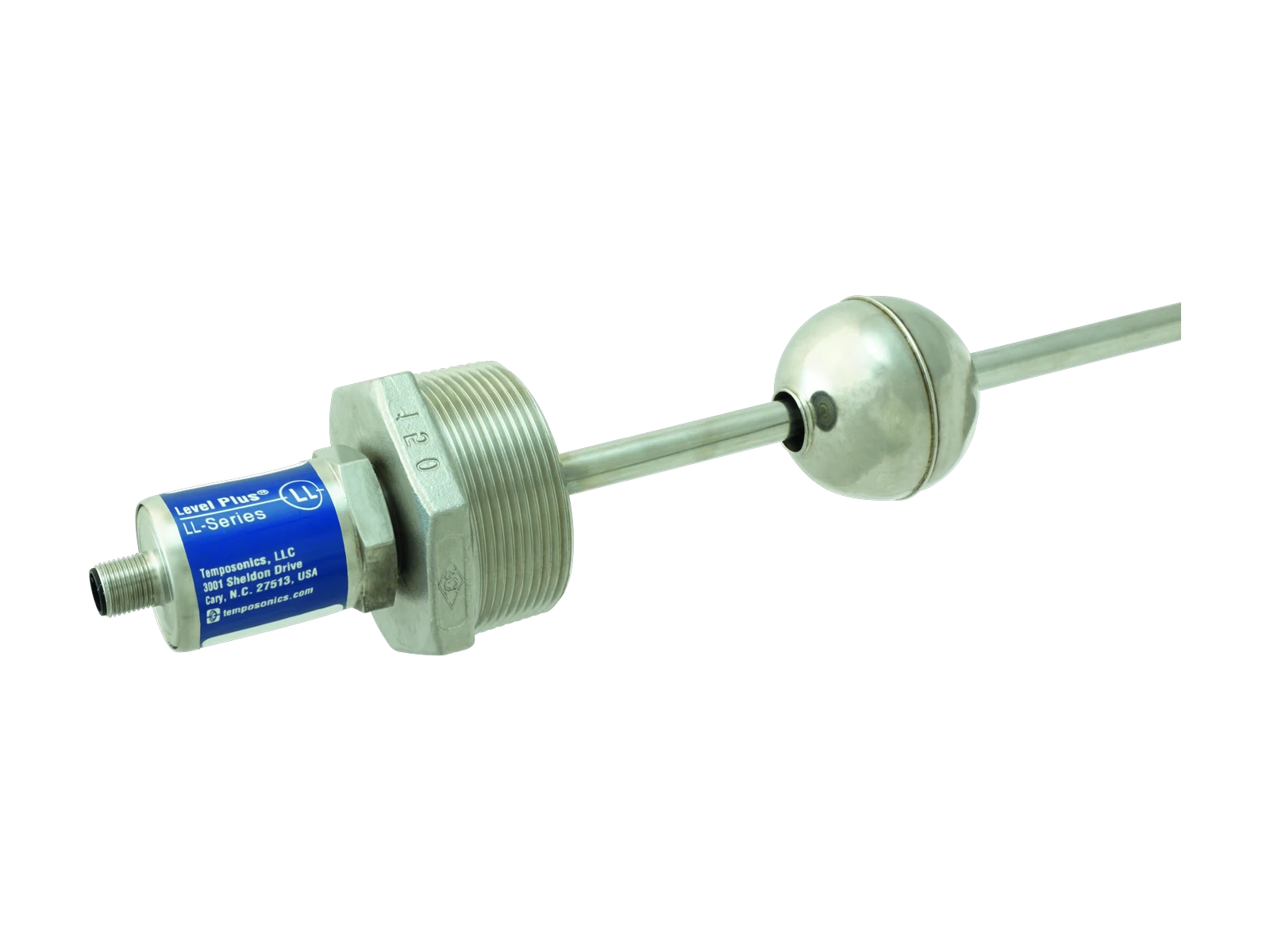

LLE
Liquid Level Transmitter
The Level Plus LLE is a general purpose liquid level transmitter for product and interface level measurement, with optional temperature measurement. Mounts on most tanks via NPT or RF flanged connections from 3/4 to 6 inches. Measuring lengths from 156mm to 2,646mm. Outputs: Analog, SSI, CANbus, IO-Link.
Key Features
Product and Interface Level measurement
Inherent Accuracy ±0.5 mm
IP69K protection rating
100 g Shock / 15 g Vibration resistance
Optional integral temperature measurement
No scheduled maintenance or recalibration
Temposonics LLE in Ireland
The Level Plus LLE is an LL-Series magnetostrictive liquid level transmitter for general purpose level measurement in machine automation and compact tank applications. It provides product and interface level measurement with optional temperature output. Mounts on most tanks via NPT or RF flanged connections from 3/4 to 6 inches. Measuring lengths from 156mm to 2,646mm, resolution ±0.5mm. Outputs include Analog, SSI, CANbus and IO-Link for direct integration with PLCs and machine controllers. No scheduled maintenance or recalibration required for a 10-year service life.
The LLE is designed for compact tank and reservoir applications where level measurement must integrate directly with machine automation protocols. Typical applications include hydraulic reservoir tanks, power units, coolant tanks and general industrial process vessels.
Emolice is the only authorised Temposonics distributor in Ireland.
Specifications
| Output | Stroke Length | Resolution |
|---|---|---|
| Analog, SSI, CANbus, IO-Link | 156–2646 mm | ±0.5 mm |
