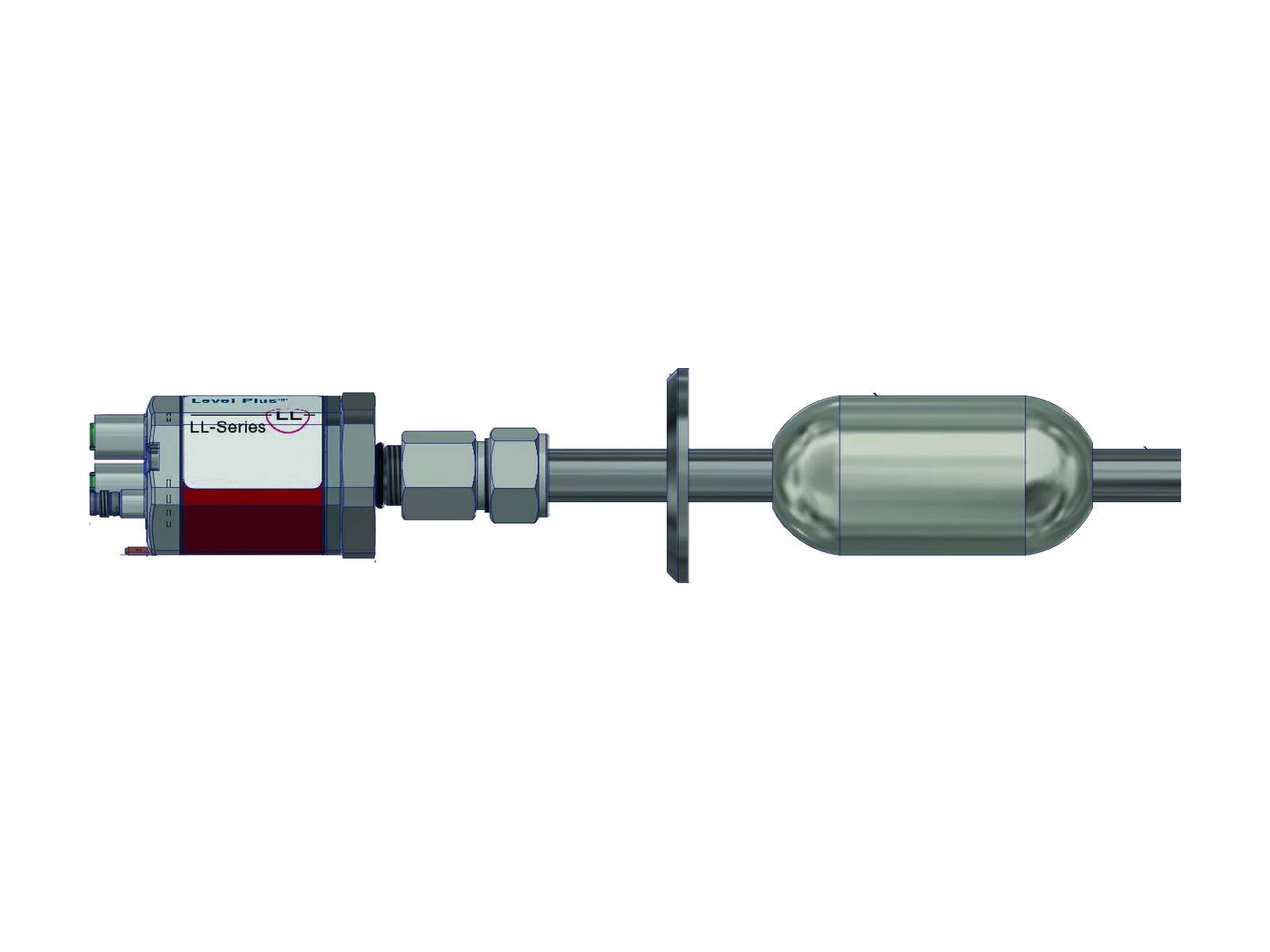

LLH
Liquid Level Transmitter
The Level Plus LLH is a liquid level transmitter for sanitary and hygienic applications, with a Ra 25µin (0.64µm) sanitary finish and NPT or Tri-Clamp connections from 3/4 to 6 inches. Measuring lengths from 127mm to 2,525mm. Outputs include Analog, SSI, CANbus, IO-Link, EtherCAT, POWERLINK, EtherNet/IP and PROFINET.
Key Features
Sanitary Finish Ra 25 µin (0.64 µm)
Product and Interface Level measurement
Inherent Accuracy ±0.5 mm
IP69K protection rating
100 g Shock / 15 g Vibration resistance
No scheduled maintenance or recalibration
Temposonics LLH in Ireland
The Level Plus LLH is an LL-Series magnetostrictive liquid level transmitter for sanitary and hygienic level measurement in machine automation applications. Sanitary finish Ra 25µin (0.64µm) standard. IP69K rated. Mounts on most tanks via NPT and Tri-Clamp connections from 3/4 to 6 inches. Measuring lengths from 127mm to 2,525mm, resolution ±0.5mm. Outputs include Analog, SSI, CANbus, IO-Link, EtherCAT, POWERLINK, EtherNet/IP and PROFINET. No scheduled maintenance or recalibration required for a 10-year service life.
The LLH is designed for sanitary process vessels and food, beverage and pharmaceutical machinery where hygienic construction and machine automation fieldbus protocols are both required. Typical applications include sanitary tank level measurement on food processing lines, brewery vessels and pharmaceutical equipment where IP69K protection and Ethernet-based protocols are specified.
Emolice is the only authorised Temposonics distributor in Ireland.
Specifications
| Output | Stroke Length | Resolution |
|---|---|---|
| Analog, SSI, CANbus, IO-Link, EtherCAT, POWERLINK, EtherNet/IP, PROFINET | 127–2525 mm | ±0.5 mm |
