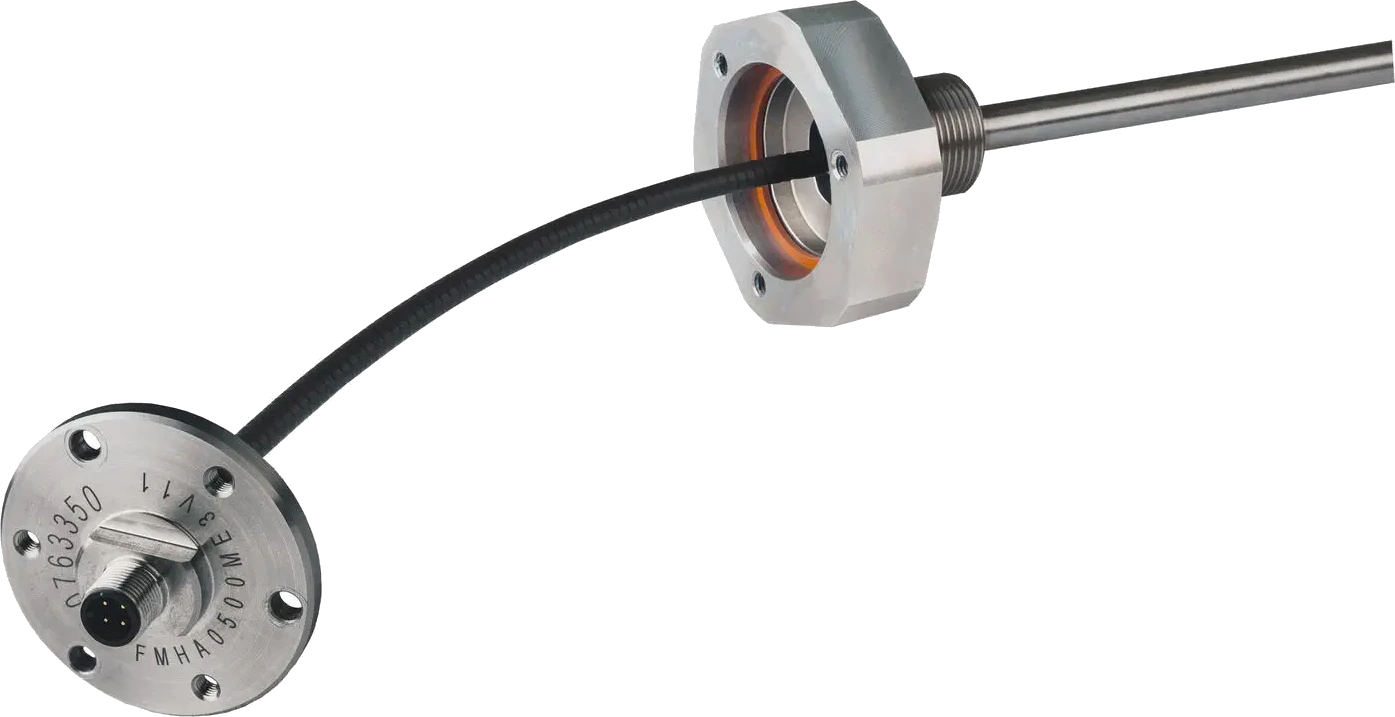

MH-Series FLEX
Position Sensors
Temposonics® MH-Series model FLEX position sensors are designed for challenging hydraulic cylinder applications. The flexible linear position sensor element enables easy serviceability which leads to decreased downtime.
Key Features
Designed for external mounting on mobile applications
Flexible position sensor element up to 5000 mm
Exchange internal components with just 200 mm of clearance, regardless of stroke length
Without breaking the hydraulic seal
Outputs: Analog, CANbus
Temposonics MH-Series FLEX in Ireland
The Temposonics MH-Series FLEX is a magnetostrictive linear position sensor with a flexible sensing element up to 10,500 mm long, for external mounting on long-stroke hydraulic cylinders. It delivers absolute, non-contact position measurement with 0.2 mm resolution and a choice of analog or CANbus output. Internal components can be exchanged with 200 mm of clearance without breaking the hydraulic seal.
The MH-Series FLEX uses a flexible sensing element for external mounting on long-stroke hydraulic cylinders where a rigid-rod sensor cannot accommodate the full travel. Internal components can be exchanged with 200mm of clearance without breaking the hydraulic seal. Typical applications include long-boom cranes, telehandlers and forestry harvesters.
Emolice is the only authorised Temposonics distributor in Ireland.
Specifications
| Output | Stroke Length | Resolution |
|---|---|---|
| Analog | up to 10,500 mm | 0.2 mm |
| CANbus | up to 10,500 mm | 0.2 mm |
Need more information?
Contact Emolice for detailed specifications, pricing, or to discuss your application requirements.
