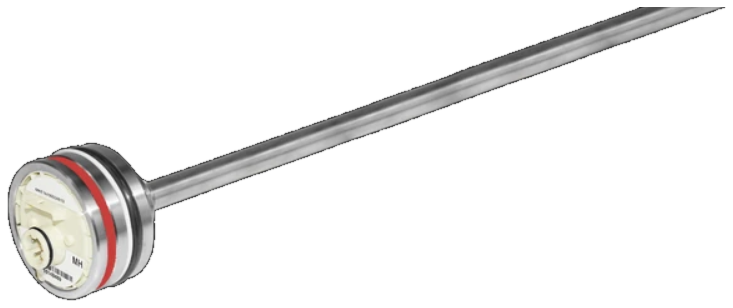

MH-Series RAIL (MHRM)
Position Sensors
Temposonics® MH-Series model RAIL (MHRM) linear position sensors are specially developed for railway applications. Compliant to railway standards and industry-specific shock, vibration, and EMC approvals.
Key Features
Designed for internal and external mounting
Compliant to railway standards
Industry-specific shock, vibration, and EMC approvals
Proprietary M12 connector system to enable IP69K
Output: Analog
Temposonics MH-Series RAIL (MHRM) in Ireland
The Temposonics MH-Series RAIL (MHRM) is a magnetostrictive linear position sensor designed for railway and rolling-stock applications. It delivers absolute, non-contact position measurement across stroke lengths of 50 to 2500 mm with 0.1 mm resolution and analog output, in an IP69K-rated housing compliant with railway-industry shock, vibration, and EMC standards.
The MHRM is designed for railway and rolling-stock applications where DIN EN 50155 shock, vibration and EMC compliance is a procurement requirement. Typical applications include door mechanisms, pantographs, tilting systems and braking functions on commuter trains, city trains and high-speed trains.
Emolice is the only authorised Temposonics distributor in Ireland.
Specifications
| Output | Stroke Length | Resolution |
|---|---|---|
| Analog | 50–2500 mm | ±0.1 mm |
