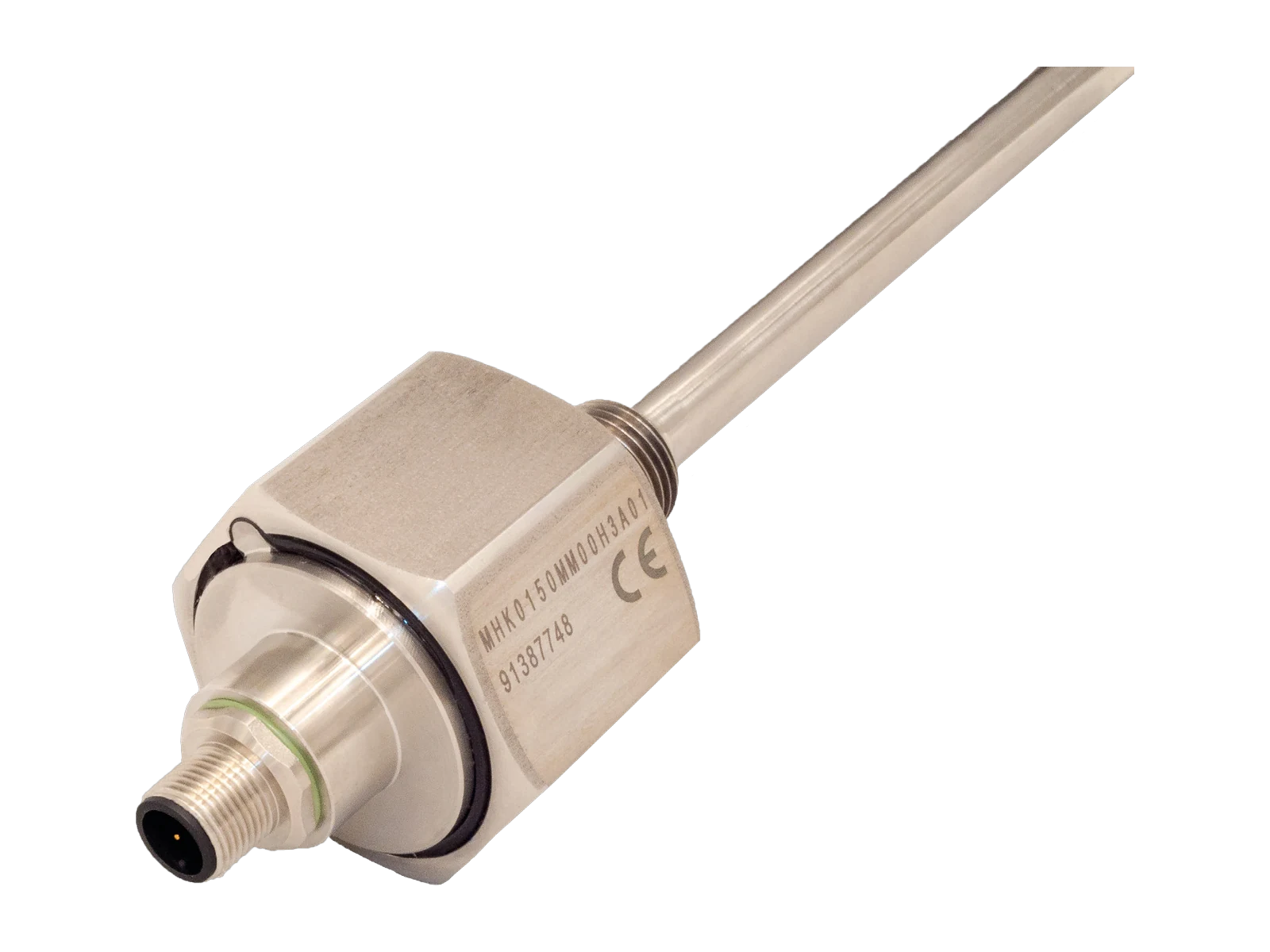

MH-Series THREADED (MH)
Position Sensors
Temposonics® MH-Series model THREADED (MH) magnetostrictive position sensors measure the absolute position of hydraulic cylinders for mobile machinery. The ruggedness gives you the certainty that your machine operates reliably.
Key Features
Designed for external mounting on mobile applications
Proprietary M12 connector system to enable IP69K
Outputs: Analog, CANbus
Temposonics MH-Series THREADED (MH) in Ireland
The Temposonics MH-Series THREADED is a magnetostrictive linear position sensor for external mounting on mobile hydraulic cylinders, covering stroke lengths of 50 to 2500 mm with 0.1 mm resolution and a choice of analog or CANbus output. Its threaded mounting makes retrofit and service straightforward.
The MH-Series THREADED is designed for external mounting on mobile hydraulic cylinders where the installation must be serviceable in the field. Typical applications include front axle steering, hitch control and attachment positioning on agricultural tractors, and boom and stabiliser control on telehandlers and off-highway equipment.
Emolice is the only authorised Temposonics distributor in Ireland.
Specifications
| Output | Stroke Length | Resolution |
|---|---|---|
| Analog | 50–2500 mm | ±0.1 mm |
| CANbus | 50–2500 mm | ±0.1 mm |
