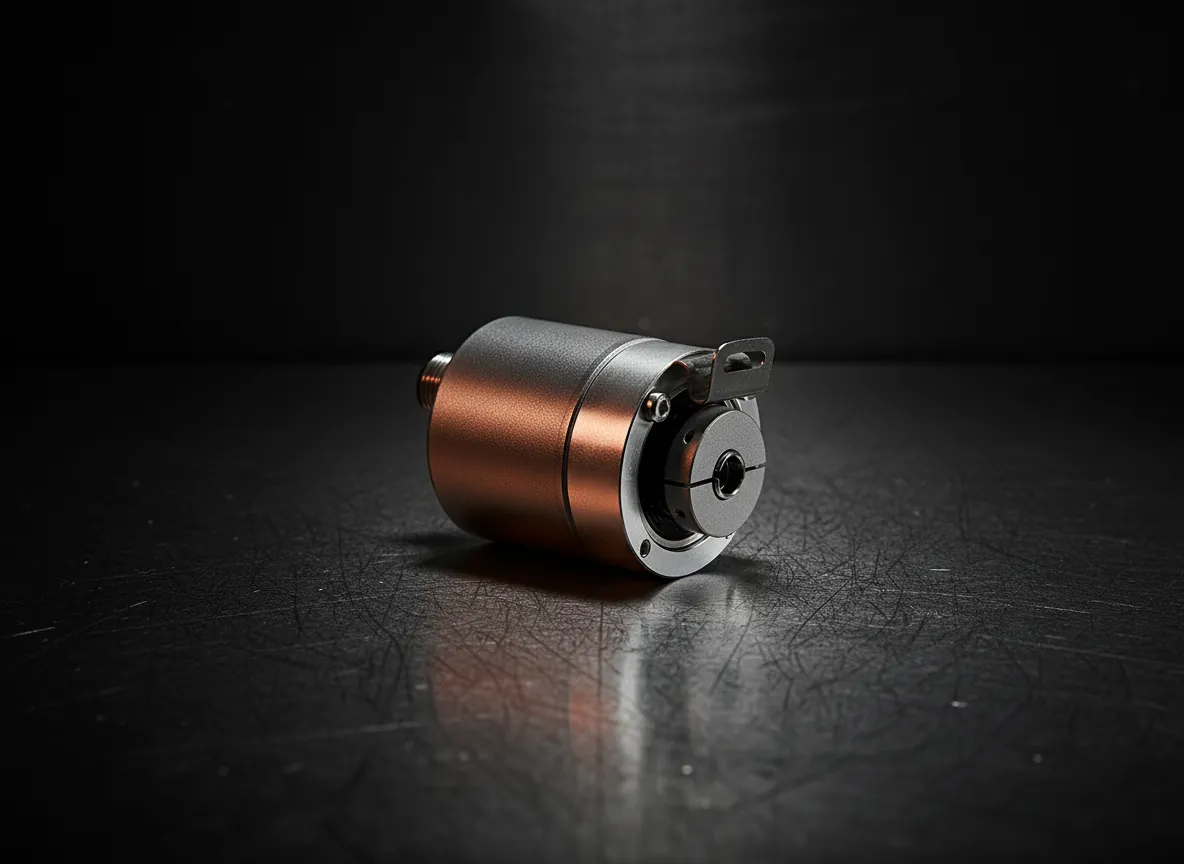

IXARC Incremental Encoders
Rotary Encoders
POSITAL IXARC incremental encoders offer reliable speed and distance feedback while keeping the system simple and cost-effective. All POSITAL magnetic encoders use TMR (tunnel magneto-resistance) sensing technology which makes them less temperature sensitive and more energy-efficient. PPR, resolution, number of turns and direction are programmable via the UBIFAST configuration tool.
Key Features
Programmable PPR up to 32,768
TMR sensing technology, temperature stable and energy-efficient
Compact magnetic, cube/square, heavy-duty, and hollow shaft variants
HTL and TTL output signals
Programmable via UBIFAST configuration tool
Up to IP69K protection
Posital IXARC Incremental Encoders in Ireland
POSITAL IXARC Incremental Encoders deliver speed and distance feedback using TMR (tunnel magneto-resistance) sensing for temperature stability and low power draw. PPR, resolution, number of turns, and direction are programmable via the UBIFAST tool, with HTL and TTL outputs and protection up to IP69K across magnetic, cube, heavy-duty, and hollow-shaft variants.
Irish machine builders use IXARC incremental encoders for motor feedback, conveyor speed monitoring, and length measurement on packaging, processing, and materials handling lines where a programmable PPR avoids holding multiple part numbers in stock.
Emolice supplies IXARC incremental encoders to Irish OEMs and supports PPR programming via the UBIFAST tool for non-standard pulse counts.
Specifications
| Output | Stroke Length | Resolution |
|---|---|---|
| HTL (Push-Pull) | Shaft / Hollow / Heavy-Duty | Up to 32,768 PPR |
| TTL (RS422) | Shaft / Hollow / Heavy-Duty | Up to 32,768 PPR |
