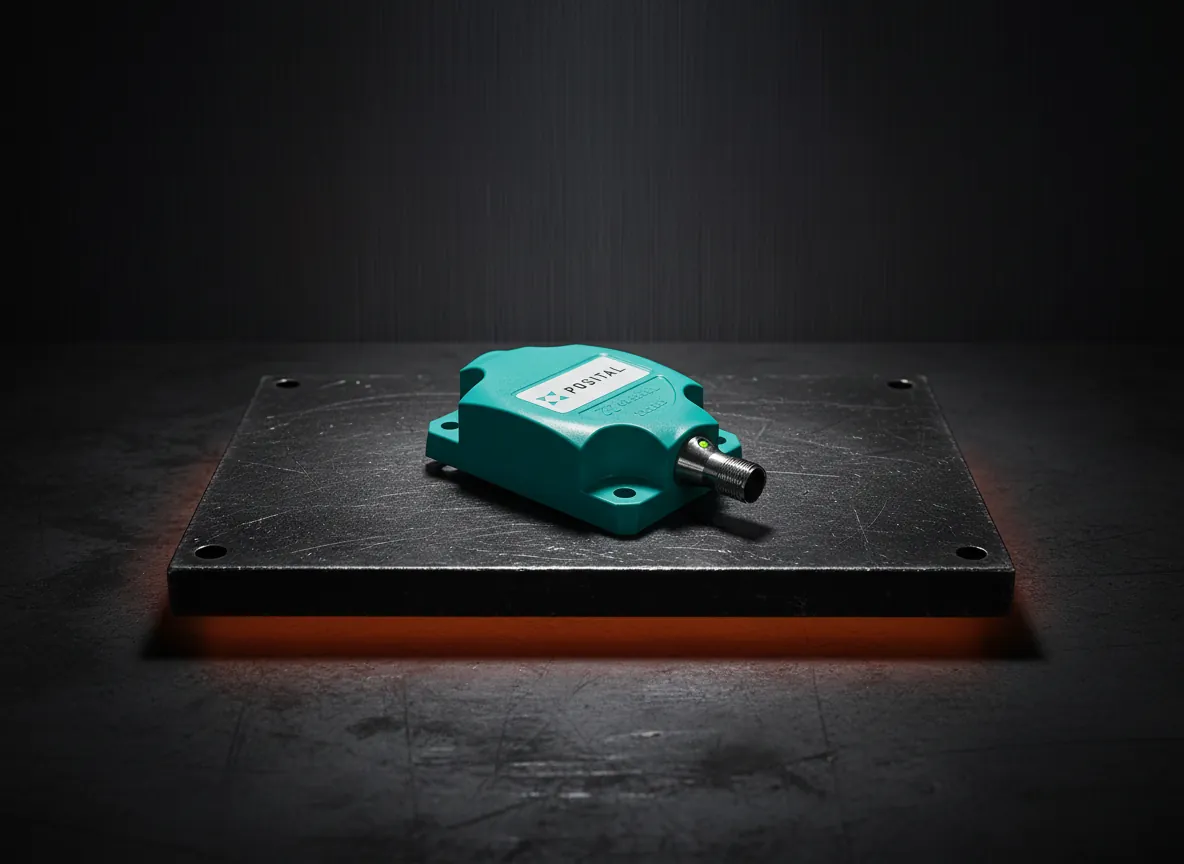

TILTIX Inclinometers
Tilt Sensors
POSITAL TILTIX inclinometers measure the angle of an object with respect to the force of gravity. These tilt sensors determine angle orientation in space and output values via the appropriate electrical interface. Easy to integrate with no mechanical linkages required beyond the mounting itself.
Key Features
Dynamic, heavy-duty, compact, and static variants
Single and dual axis (pitch & roll) measurement
Integrated accelerometer & gyroscope (dynamic models)
0.01° resolution, ±0.10° accuracy
Up to IP69K protection
ATEX Zone 1 & 21 versions available
Interfaces: CANopen, J1939, Analog, SSI, IO-Link, Modbus RTU
Specifications
| Output | Stroke Length | Resolution |
|---|---|---|
| CANopen, J1939 | Single & Dual Axis | 0.01° |
| Analog (4–20 mA, 0.5–4.5 V) | Single & Dual Axis | 0.01° |
| SSI, IO-Link, Modbus RTU | Single & Dual Axis | 0.01° |
