DRR244
DIN-Rail PID Controller and Signal Converter

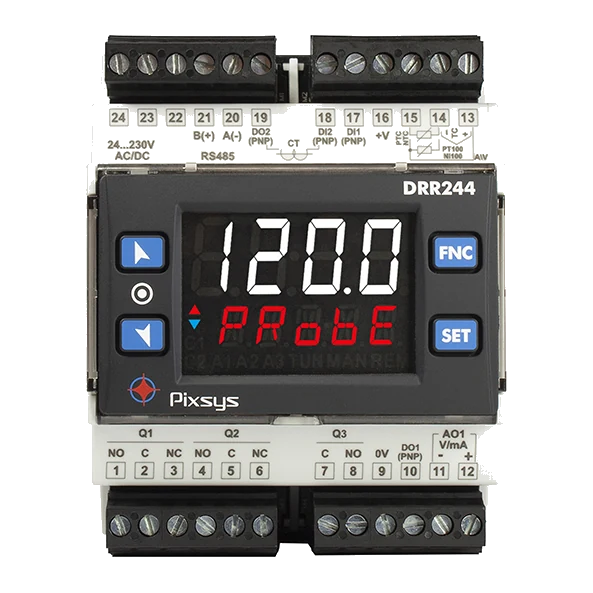

The Pixsys DRR244 is a DIN-rail mounted PID controller in the Blue Line range. The analogue input is programmable for resistance thermometers and thermocouples, or for mA and Volt process signals. Outputs are selectable as command, alarm, or analogue retransmission. The analogue output is galvanically isolated from the input, so the DRR244 also functions as a signal converter. RS485 with Modbus RTU slave protocol. Extended-range power supply 24 to 230V AC/DC with galvanic isolation.
Key Features
DIN-rail mounting, approximately 210g
Programmable analogue input: resistance thermometers, thermocouples, mA and Volt process signals
Outputs selectable as command, multiple alarm modes, or analogue retransmission
Galvanically isolated analogue output, usable as a signal converter
RS485 with Modbus RTU slave protocol
Remote setpoint over Modbus RS485 or 4-20mA input
Dual PID with separate heating and cooling settings
Loop break alarm, soft start, open and close logic for motorised valves
NFC/RFID configuration via the MyPixsys app
Pixsys DRR244 in Ireland
The DRR244 does two jobs from one DIN-rail position. As a PID controller it covers heating and cooling with separate PID settings, motorised valve control and remote setpoint over Modbus or a 4-20mA input. Because the analogue output is galvanically isolated from the input, the same device also works as a signal converter, retransmitting process value or setpoint. RS485 with Modbus RTU brings it onto an industrial network, and it pairs with the Pixsys CNV580 IIoT modem for remote monitoring.
The DRR244 is specified where DIN-rail PID control requires analogue output, network communication or remote setpoint, and where a single device covering both control and signal conversion reduces panel component count. Typical applications include process skids, heating and cooling plant, and control panels on a Modbus network. Suitable for any application requiring DIN-rail PID control with analogue output or Modbus communication.
Emolice is the only official Pixsys distributor in Ireland. Contact Emolice with your specification.
