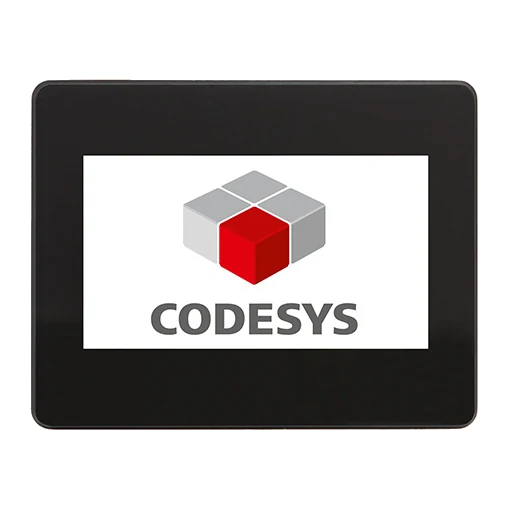

TC570
Capacitive Touch Controller, 7"
The Pixsys TC570 is a 7 inch capacitive touchscreen operator panel running the CODESYS 3.5 runtime on Linux Yocto, so the panel serves as both operator interface and controller. Display is 1024 x 600 TFT wide. Two 10/100 Ethernet ports with separate MAC addresses allow the machine network to be kept separate from the enterprise network, alongside RS485 serial and CANopen. Docker support allows other applications to run in parallel.
Key Features
7 inch capacitive touchscreen, 1024 x 600 TFT
CODESYS 3.5 runtime on Linux Yocto
Two 10/100 Ethernet ports with separate MACs, separating machine and enterprise networks
RS485 serial and CANopen
OPC UA and the fieldbuses supported by CODESYS
Docker support for parallel applications
VPN access through the pre-installed Pixsys Portal service for remote assistance
Modular licensing by core count, visualisation option (WebVisu or TargetVisu) and added functions such as SoftMotion and CNC
Pixsys TC570 in Ireland
The TC570 combines operator panel and controller in one unit running CODESYS 3.5, which matters where a machine builder already programmes in CODESYS and wants the same environment on the panel. Two Ethernet ports with separate MAC addresses let the machine network stay isolated from the enterprise network while both remain reachable, and the pre-installed Pixsys Portal service provides VPN access into the plant subnetwork for remote assistance. Licensing is modular, so cores, visualisation and functions such as SoftMotion or CNC are specified to the application rather than bundled.
The TC570 is specified where the operator panel also runs the control logic and CODESYS is the programming environment. Typical applications include OEM machinery, process skids and packaged equipment where a single unit replaces separate PLC and HMI. Suitable for any application requiring a combined CODESYS controller and 7 inch operator panel with network separation.
Emolice is the only official Pixsys distributor in Ireland. Contact Emolice with your specification.
