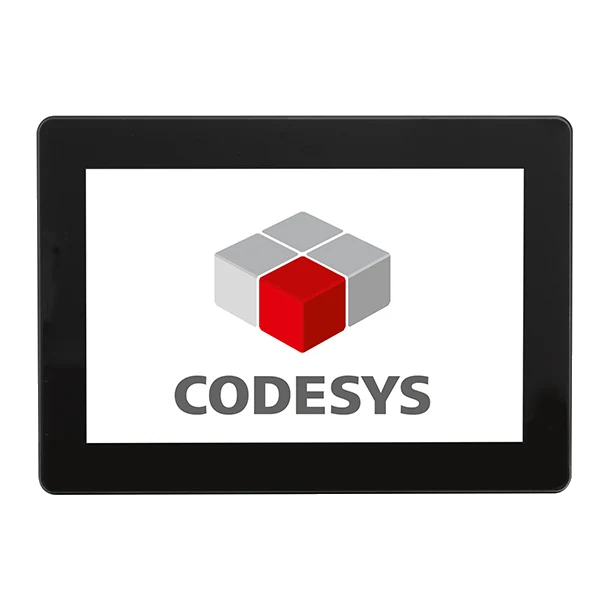

TC615
Capacitive Touch Controller, 10.1"
The Pixsys TC615 is a 10.1 inch capacitive touchscreen operator panel running the CODESYS 3.5 runtime on Linux Yocto. Display is 1280 x 800 TFT wide. Two 10/100 Ethernet ports with separate MAC addresses allow the machine network to be kept separate from the enterprise network, alongside RS485 serial and CANopen. Docker support allows other applications to run in parallel.
Key Features
10.1 inch capacitive touchscreen, 1280 x 800 TFT
CODESYS 3.5 runtime on Linux Yocto
Two 10/100 Ethernet ports with separate MACs
RS485 serial and CANopen
OPC UA and the fieldbuses supported by CODESYS
Docker support for parallel applications
VPN access through the pre-installed Pixsys Portal service
Modular licensing by core count, visualisation option and added functions
Pixsys TC615 in Ireland
The TC615 is the 10.1 inch model in the Pixsys CODESYS panel range, identical in capability to the TC570 with a larger 1280 x 800 display. It runs CODESYS 3.5 on Linux Yocto, carries two Ethernet ports with separate MAC addresses for network separation, and supports Docker so additional applications can run alongside the control task.
The TC615 is specified where the control application needs more screen area than a 7 inch panel provides, such as multi-page process graphics, trending or recipe management alongside operator control. Typical applications include process plant, packaging lines and OEM machinery programmed in CODESYS. Suitable for any application requiring a combined CODESYS controller and 10.1 inch operator panel.
Emolice is the only official Pixsys distributor in Ireland. Contact Emolice with your specification.
