T-Series
Industrial Position Sensors, For Hazardous Areas

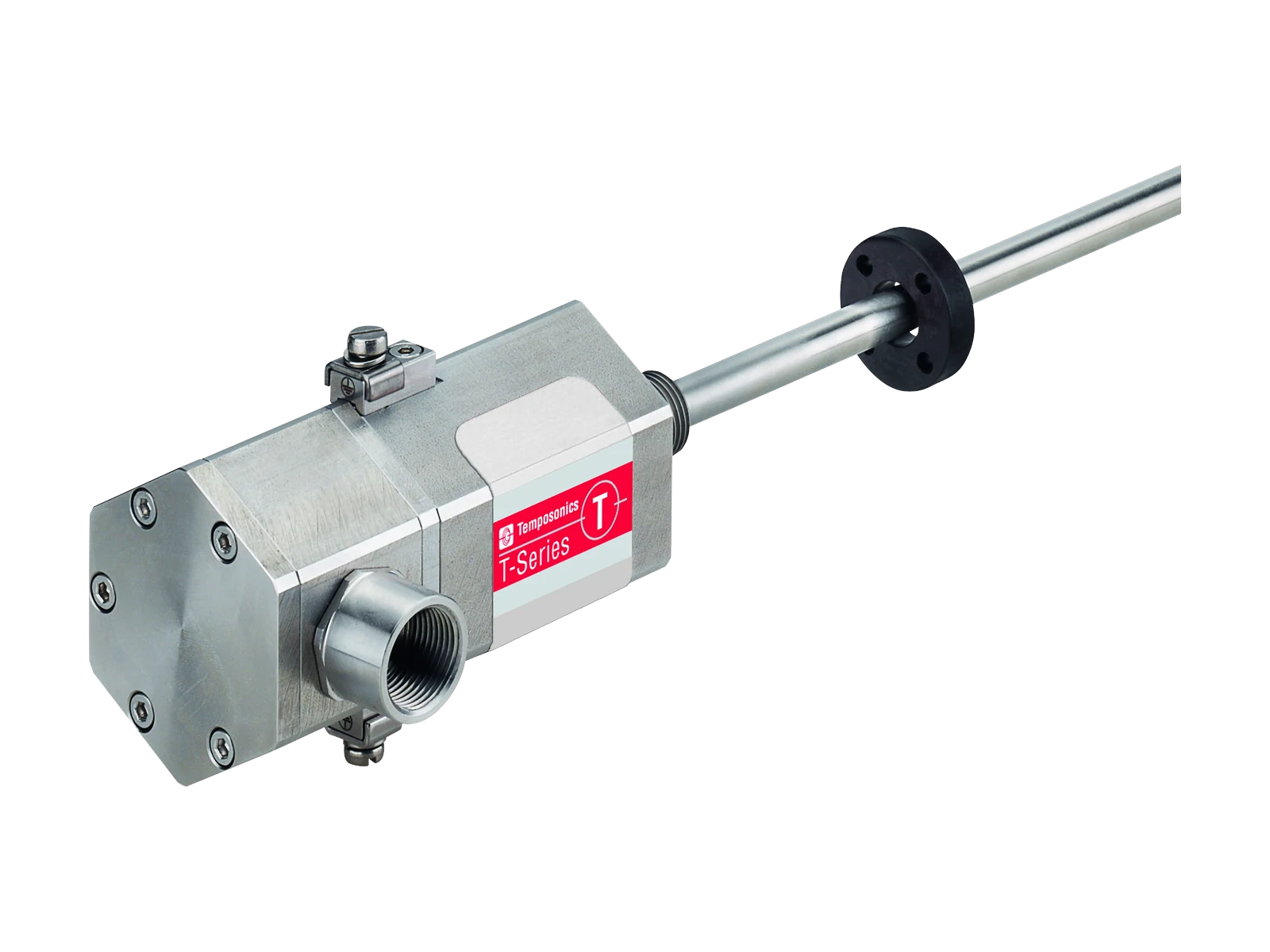

The Temposonics T-Series TH is a magnetostrictive linear position sensor designed for installation in potentially explosive atmospheres, with stainless steel 1.4404 (AISI 316L) housing and approvals including ATEX, IECEx, NEC, CEC, EAC Ex, ClassNK, KCs, CCC and UKCA. IP ratings include IP66, IP67, IP68 and IP69K. Available in rod style for cylinder installation. Outputs: Analog, CANbus, SSI.
Key Features
Developed for use in hazardous areas
Approvals: ATEX, NEC, CEC, EAC Ex, IECEx, KCs and Japanese market
IP66/IP67/IP68/IP69 and NEMA 4/4x ratings
Available as rod version (TH) for linear position measurement in a cylinder
Outputs: Analog, CANbus, SSI
Temposonics T-Series in Ireland
The Temposonics T-Series TH is a magnetostrictive linear position sensor for installation in potentially explosive atmospheres. Measuring range 25mm to 7,620mm.
The T-Series TH is specified for linear position measurement in ATEX and IECEx certified hazardous areas where the sensor must be resistant to flames or corrosive substances. Typical applications include hydraulic cylinder position feedback on offshore platforms, chemical plant, pharmaceutical solvent handling equipment and power generation machinery. ClassNK approval makes the T-Series suitable for marine and offshore installation.
Emolice is the only authorised Temposonics distributor in Ireland.
Specifications
| Output | Stroke Length | Resolution |
|---|---|---|
| Analog | 25–7620 mm | < 2 µm |
| CANbus | 25–7620 mm | 1 µm |
| SSI | 25–7620 mm | 1 µm |
Applications
Oil and gas processing and refining
Chemical and petrochemical plants
Pharmaceutical manufacturing in classified areas
Mining and mineral processing
Paint and coatings production
Any application in ATEX Zone 1 or Zone 2 environments
Selection Guidance
The T-Series TH carries the widest set of hazardous area approvals in the Temposonics range, including ATEX, IECEx, NEC, CEC, EAC Ex, ClassNK, KCs, CCC and UKCA. Select the T-Series where the installation is in a classified zone. For non-hazardous applications, consider the R-Series V, G-Series V, or E-Series.
T-Series sensors use the TH prefix. Specify the required hazardous area certification when ordering. Contact Emolice for selection guidance. Use the Part Number Decoder →
Official Temposonics Distributor
Emolice is the authorised Temposonics distributor in Ireland, providing genuine products, factory-trained support, and full warranty coverage.
Ireland-Based Support
Technical support and application guidance. Learn more about Temposonics in Ireland
Need a Quote or Technical Support?
Emolice is the only authorised Temposonics distributor in Ireland. Contact Emolice for pricing and application guidance.
Ireland support: technical support and application guidance. Call +353 1 568 6556
Frequently Asked Questions
What hazardous area certifications does the T-Series hold?
The T-Series holds ATEX, IECEx, NEC, CEC, EAC Ex, ClassNK, KCs, CCC and UKCA approvals.
Can the T-Series be used in Zone 1?
Yes, the T-Series is certified for installation in ATEX Zone 1 and Zone 2 environments.
What is the maximum stroke length of the T-Series?
The T-Series supports stroke lengths from 25 mm to 7,620 mm.
Is the T-Series available with industrial Ethernet?
No, the T-Series supports analog, CANbus, and SSI outputs. For industrial Ethernet in non-hazardous areas, consider the R-Series V.
